Fangchengbao AC Charger Brand New

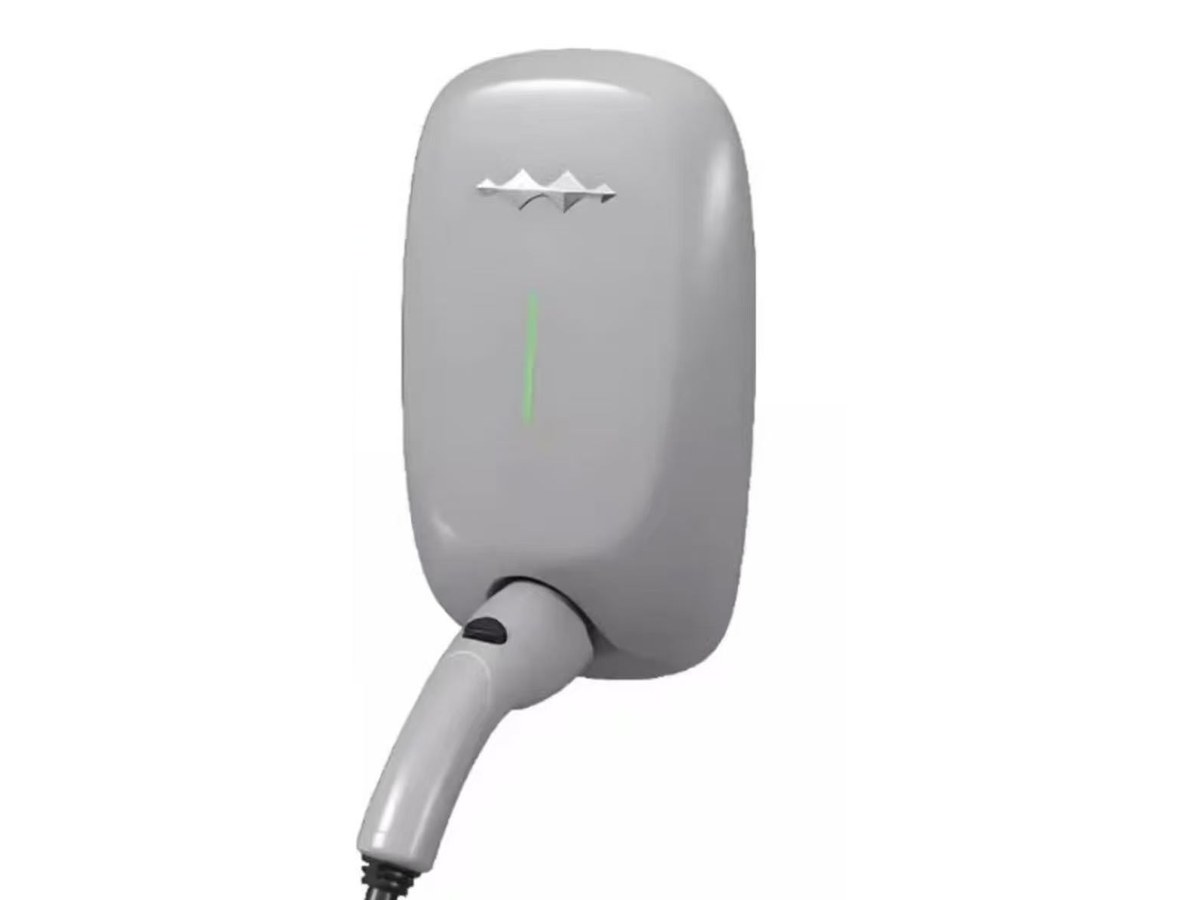

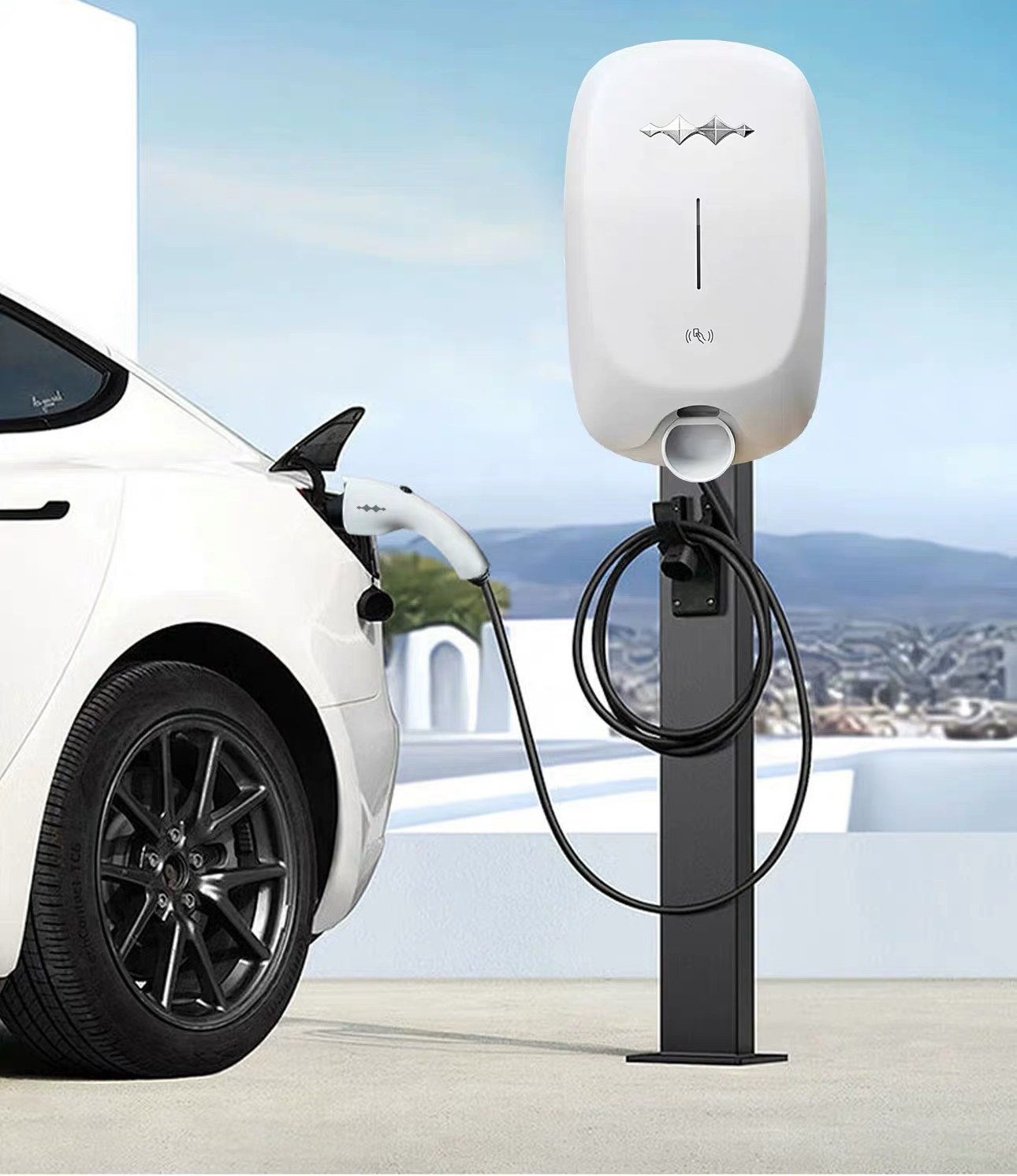

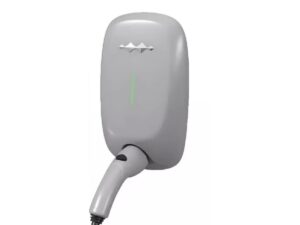

Fangchengbao 7 kW AC Wall Charger

Original Fangchengbao (FCB) 7 kW AC wall charger with GB/T connector, 5 m cable, card start and plug-and-charge, IP54 protection and 11 safety functions.

7 kWRated Power
GB/T AC (GB/T 20234)Connector
IP54Protection Rating

Export price on request

FOB / CIF · Payment by T/T

Get Latest Price WhatsApp

Original manufacturer product
Chinese GB/T standard
User manual & packing list included
Ships with your vehicle order

Overview of the Fangchengbao 7 kW AC Wall Charger

7 kW AC charging at 32 A from a single-phase 220 V supply
GB/T AC connector with 5 m charging cable
Plug-and-charge or RFID card start
Scheduled charging set from the vehicle screen; stops automatically when the battery is full
IP54 protection, works from −30 °C to +55 °C
11 protection functions, including leakage, lightning and relay-welding detection

The Fangchengbao 7 kW AC Wall Charger is the original home charger of the Fangchengbao (Formula Leopard) brand. It works with vehicles that have the Chinese GB/T AC charging port and starts charging automatically when plugged in, or with an RFID card.

Who is it for?

Importers of Fangchengbao Bao 5, Bao 8 and other Chinese-spec GB/T vehicles who want a factory-matched home charger for their customers.

Installation requirements

Single-phase 220 V ±10%, 45–65 Hz supply
Dedicated 40 A circuit breaker and copper supply cable of at least 6 mm²
Wall mounting, indoor or outdoor, protected from standing water
Installation by a qualified electrician according to the user manual and local regulations

What is in the box

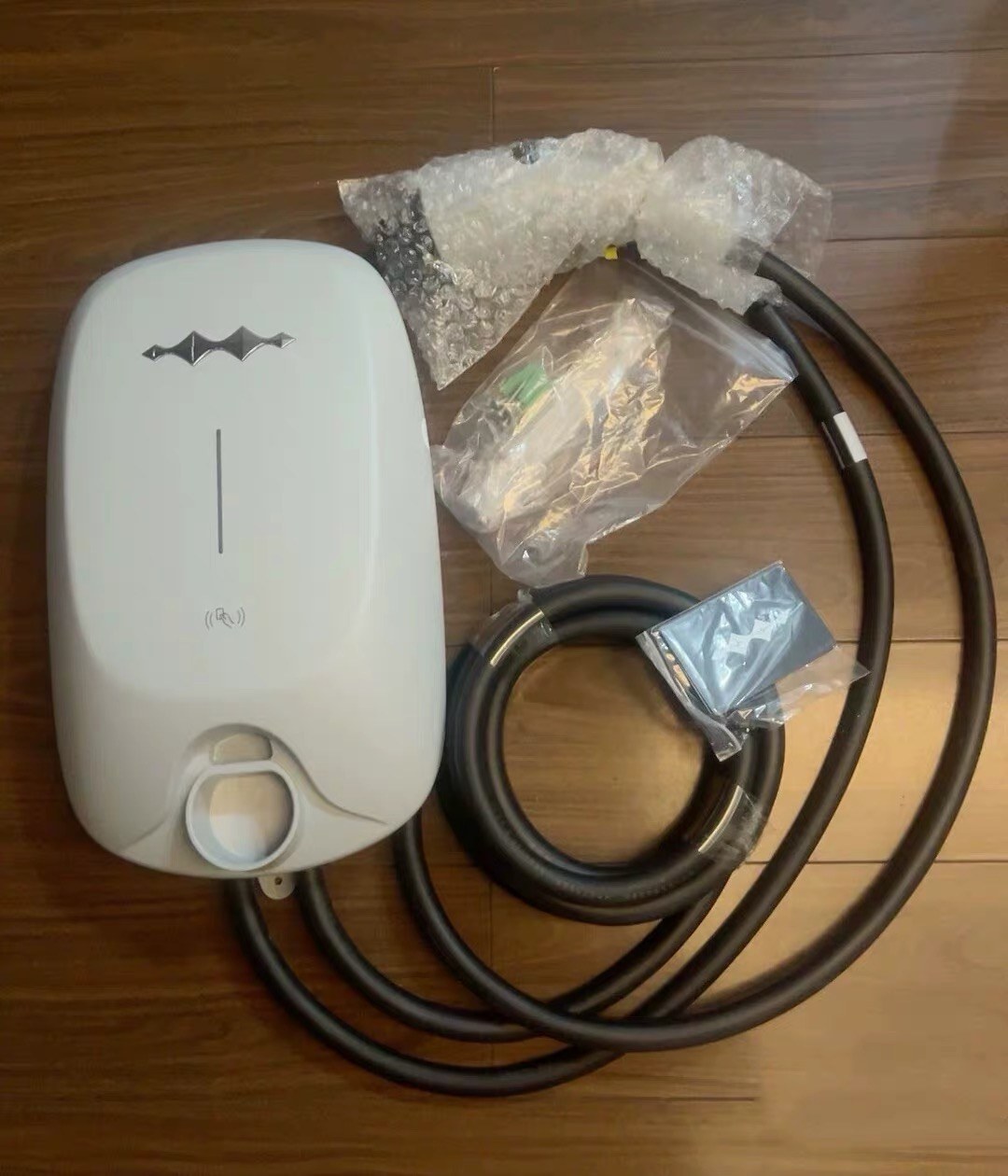

Wall charger with integrated 5 m cable and GB/T connector, RFID card, mounting accessories and user manual.

Fangchengbao 7 kW AC Wall Charger Specifications

Brand	Fangchengbao
Charger Type	AC Charger
Rated Power	7 kW
Connector	GB/T AC (GB/T 20234)
Protection Rating	IP54
Model	ACC01-07J/S48
Input Voltage	220 VAC ±10%, single-phase
Input Frequency	45 – 65 Hz
Rated Current	32 A
Cable Length	5 m
Dimensions	375.5 × 218.4 × 112.1 mm
Weight	3.4 kg
Operating Temperature	−30 °C to +55 °C
Start Mode	Plug & charge / RFID card
Standards	GB/T 20234, NB/T 33008.2-2018, NB/T 33002-2018
Protection	Overcurrent, overvoltage, short circuit, over-temperature, abnormal temperature, leakage, grounding, lightning, relay welding detection, communication fault, power-on self-test
Recommended Supply	40 A circuit breaker, copper cable ≥ 6 mm²

Specifications are for reference and may vary by trim and production batch. The final configuration is confirmed in the sales contract.

Frequently Asked Questions

Does it support scheduled charging?

Yes. With a compatible vehicle you can set the charging schedule on the vehicle screen, and charging stops automatically when the battery is full.

Which vehicles can use this charger?

This charger uses the Chinese GB/T standard and works with vehicles that have a GB/T charging port, such as the Chinese-spec BEV, PHEV and EREV models we export. Vehicles with a Type 2 / CCS2 or Type 1 port are not compatible.

Can I order chargers together with vehicles?

Yes. Chargers can be shipped in the same container as your vehicles or packed with your vehicle order, and are listed in the same export documents.

What should I check before installation?

Check that your local grid voltage, frequency and wiring match the charger's input requirements. Installation must be carried out by a qualified electrician in line with the manual and local regulations.
